One frame

Frame Pipeline

The renderer is a physically-based HDR pipeline running on an abstracted render device — the same scene renders identically across Metal, OpenGL, Direct3D and Vulkan because every backend implements one common interface. A frame flows through these stages:

Extract Scene → RenderWorld: frustum culling, LOD selection, instancing batches

Shadow Pass Cascaded shadow maps for the sun / directional light

Scene Pass (HDR) Sky & clouds, opaque PBR geometry, skinned meshes, instanced batches, particles, transparents, fog

Ambient Occlusion SSAO / HBAO / GTAO from the depth buffer + blur pass — darkens only the ambient term

Bloom Bright-pass over the threshold → blur → added back at intensity

Tonemap ACES filmic curve maps HDR to display range, then gamma correction

FXAA Fast approximate anti-aliasing on the final image

UI & Present In-world UI, widgets, debug overlays → swapchain

Cross-platform

Graphics Backends

Five backends implement the render device: Metal (macOS), OpenGL (everywhere), Direct3D 11 and Direct3D 12 (Windows) and Vulkan. Pick the backend under Edit ▸ Preferences ▸ Renderer. Metal and OpenGL are the flagship backends with the deepest feature set; the others track them.

Feature	OpenGL	Metal	D3D11	D3D12	Vulkan
PBR geometry, node-graph materials, instancing, GPU skinning, in-game UI	✅	✅	✅	✅	✅
Procedural sky, IBL ambient, fog, aurora, stars	✅	✅	✅	✅	✅ (basic)
HDR post-FX chain (bloom, ACES, FXAA), SSAO/HBAO/GTAO	✅	✅	✅	✅	✅
Cascaded shadow maps (3 cascades)	✅	✅	single map	single map	single map
3D-volumetric cloud mode, god rays, lens flare, contrails, cirrus, shooting stars	✅	✅	partial	partial	partial
GPU weather particles (rain/snow simulation on GPU)	✅ transform feedback	✅ compute	—	—	—

◆

Note: material node graphs cross-compile to every backend automatically — you never author per-API shaders. See the material pipeline.

Light

Lights & PBR

Surfaces use a metallic-roughness workflow (Cook-Torrance BRDF): albedo, metallic and roughness describe every material, lit by the scene's analytic lights plus image-based ambient and specular derived from the sky itself.

Light type	Properties
Directional	Color, Intensity, Casts Shadow — parallel light, the shadow-casting type.
Point	Color, Intensity, Range (attenuation radius).
Spot	Color, Intensity, Range, Spot Angle.

The Sun and Moon are two automatic directional lights owned by the Sky entity — their direction, colour and intensity are driven entirely by the Environment settings (time of day, moon phase), so a day-night cycle lights the scene correctly with no manual keyframing.

Depth

Shadows

On Metal and OpenGL the directional light renders cascaded shadow maps — three 2048² cascades fit to slices of the camera frustum, texel-snapped so shadows don't swim as the camera moves. Cascades are bounded to a 250 m shadow distance, which keeps the near cascade sharp. Direct3D and Vulkan currently use a single shadow map.

Meshes opt in per component with Casts Shadow and Receives Shadow. A debug view tints the image by cascade index for tuning.

Polish

Post-Processing

After the HDR scene pass, the frame runs through the post chain. Settings live in Edit ▸ Preferences ▸ Post-processing:

Stage	What it does · settings
Ambient Occlusion	Darkens creases and contact points — affects only the image-based ambient term, never direct light. Choose the algorithm: SSAO (kernel sampling), HBAO (horizon-based visibility) or GTAO (ground-truth horizon arcs); tune Radius and Intensity. Disabled = zero cost.
Bloom	Bright pixels glow past a Threshold, blurred and added back at an Intensity.
Tonemap	ACES filmic curve maps HDR to display range, followed by gamma correction.
FXAA	Fast approximate anti-aliasing on the final image.

Above

Sky & Atmosphere

The sky is fully procedural — atmosphere, sun, moon, stars, clouds, aurora — and doubles as the scene's image-based light source. All of it lives on the Sky entity's Environment component, edited in the Details panel and scriptable at runtime through the env API group (every field has a get/set).

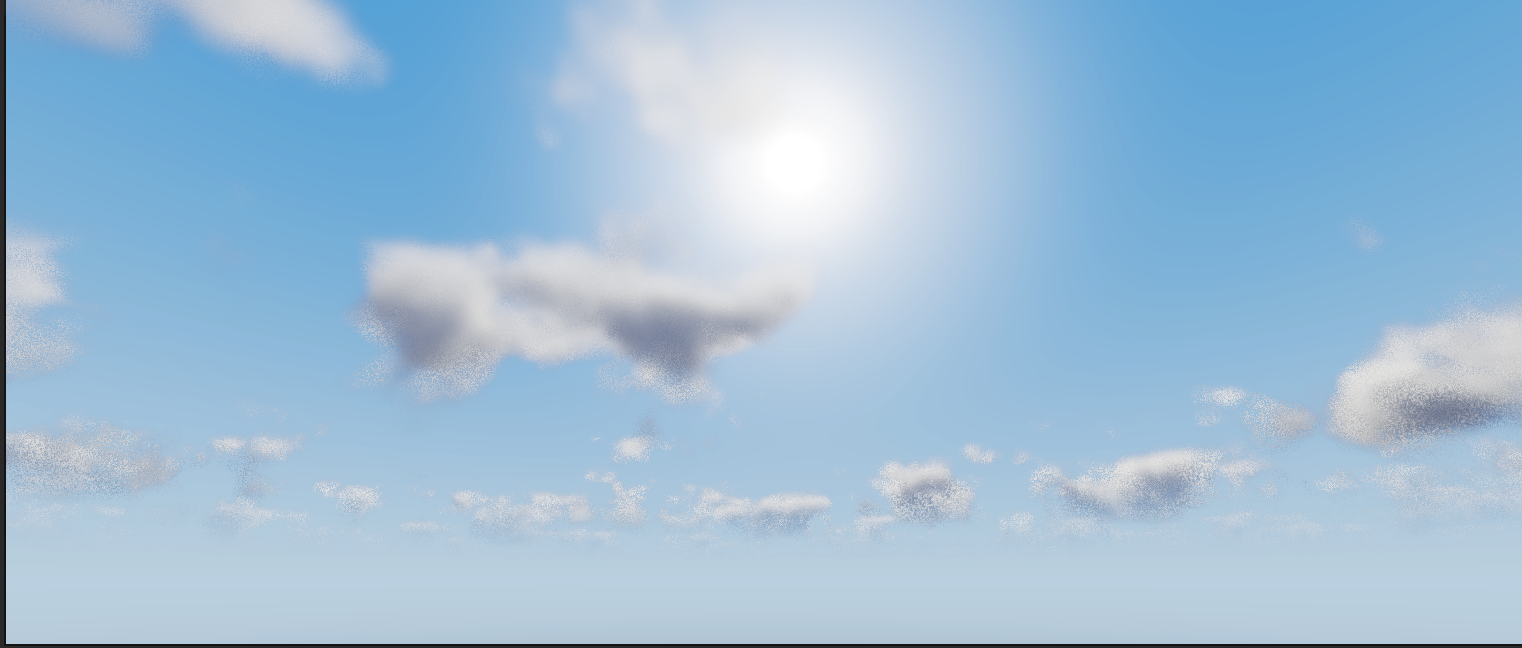

Procedural daytime sky with volumetric clouds

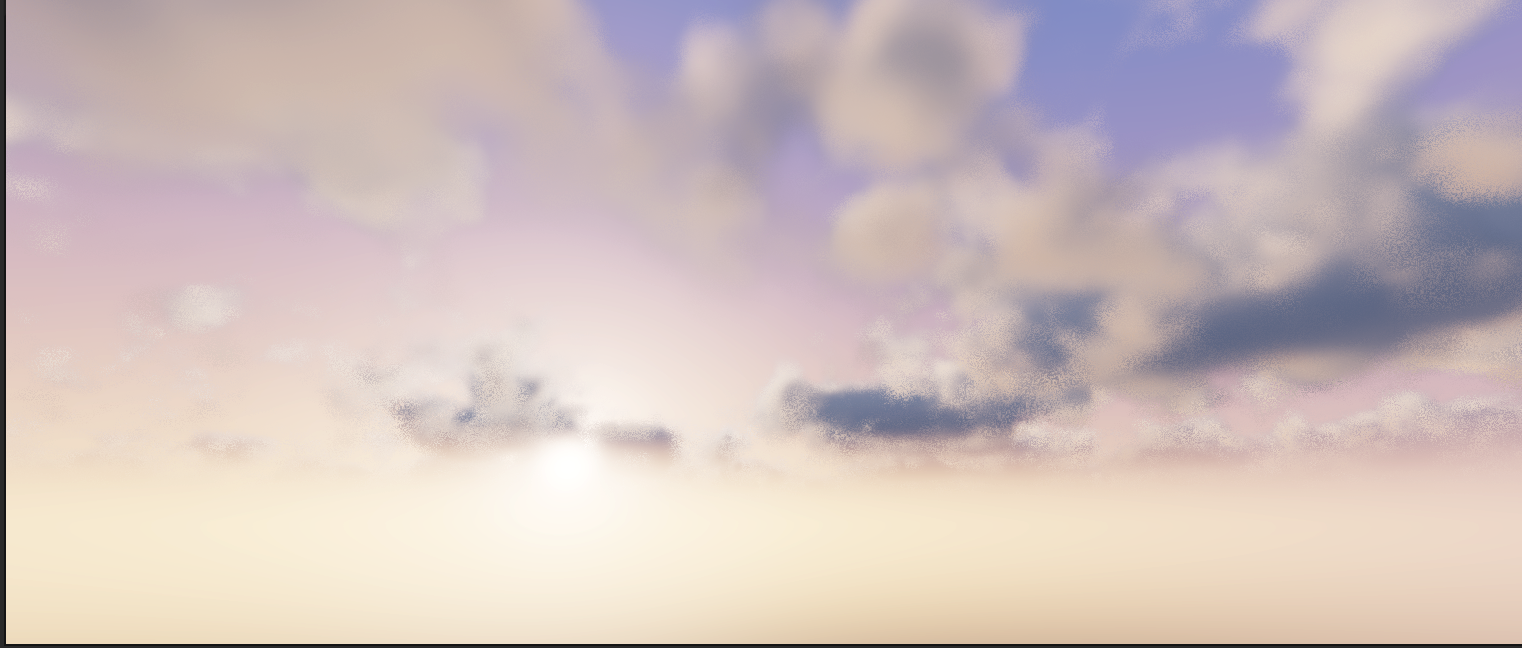

Day-night cycle

A time-of-day clock slider (0.25 = sunrise, 0.5 = noon, 0.75 = sunset) with optional Auto-Advance and a configurable full-day length. The sun and moon arcs, their colours and brightness, the moon phase (eight named phases, with an optional automatic lunar cycle over N days) all follow the clock.

Clouds

Coverage-driven procedural clouds with two modes — Sky-dome (default) and 3D volumetric (parallax), where clouds are anchored in world space and parallax as you move (with a tunable cloud height). Quality presets (Low / Medium / High), an optional quarter-resolution cloud pass for performance, plus Density, Fluffiness, Tint and wind direction/speed. Separate Cirrus and Contrail layers add high-altitude detail.

Sun effects, fog & precipitation

God rays — crepuscular rays through broken cloud; Lens flare — camera artifact overlay.
Atmospheric fog — density plus a ground-hugging height falloff; distant geometry picks up aerial perspective.
Rain / Snow / Wetness — precipitation amounts spawn particles, wetness darkens the ground and snow whitens it (usually driven by the Weather system).

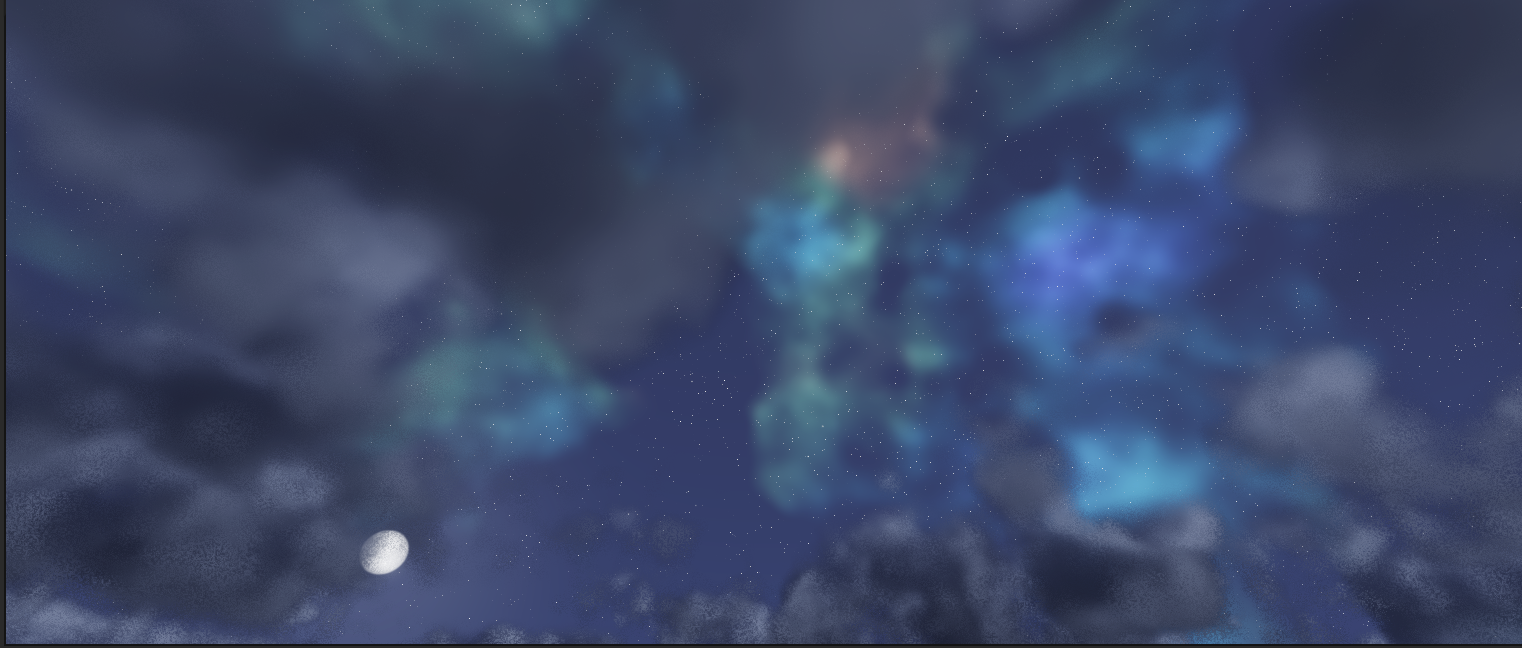

Night sky

Stars — brightness, colour, density, size and variation, glow, twinkle.
Milky Way band and night-only shooting stars.
Nebula — three-colour procedural nebula with quality presets and a seed.
Aurora — intensity, base and top colours, height and fragmentation.

Dynamic

Weather

The Weather entity blends between built-in presets — Clear, Cloudy, Overcast, Foggy, Rain, Storm, Snow — and writes cloud coverage, fog, wind, precipitation and wetness into the Environment over a configurable transition time. An Auto-Cycle mode wanders between weathers on its own.

Intensity scales the active preset; Transition sets the blend duration.
Precipitation — camera-following rain and snow particle pools (with per-type particle caps) that collide with the ground; on capable backends the simulation runs entirely on the GPU.
Storm adds lightning flashes with an optional thunder sound asset.
Environment sliders stay live — once you hand-tune a field, the weather stops owning it.

Scripts can drive weather directly via env.setCloudCoverage, env.setFogDensity, env.setWindSpeed and friends.

Fast

Performance Features

System	What it does
Frustum culling	Off-screen objects never reach the GPU; the shadow pass culls against the light instead so off-screen casters still shadow.
LOD system	The LOD component swaps meshes by camera distance; terrain chunks generate their own LOD chain automatically (65→33→17→9 vertices per chunk edge) with skirts hiding the seams.
GPU instancing	Same-mesh objects batch into one instanced draw automatically, with per-instance tint — foliage, particles and weather ride the same path.
Async streaming	Assets load on background threads; completed loads register on the main thread under a per-frame budget so bursts never hitch. Exported games stream from the `.hpak` on demand.
Pipeline caching	Material shaders cache per hash — identical graphs share one GPU pipeline.
Profiler	Built-in per-pass GPU and per-scope CPU timing with F9 captures. Editor ▸ Profiler.

Point of view

Cameras

The Camera component defines FOV, near/far planes and a perspective or orthographic projection. In the editor, the editor camera always drives the viewport; in play mode the camera flagged Main Camera wins (falling back to the first camera found, then to a safe default so an empty scene still renders). Scripts move the active view through the camera API group (position, rotation, FOV).
